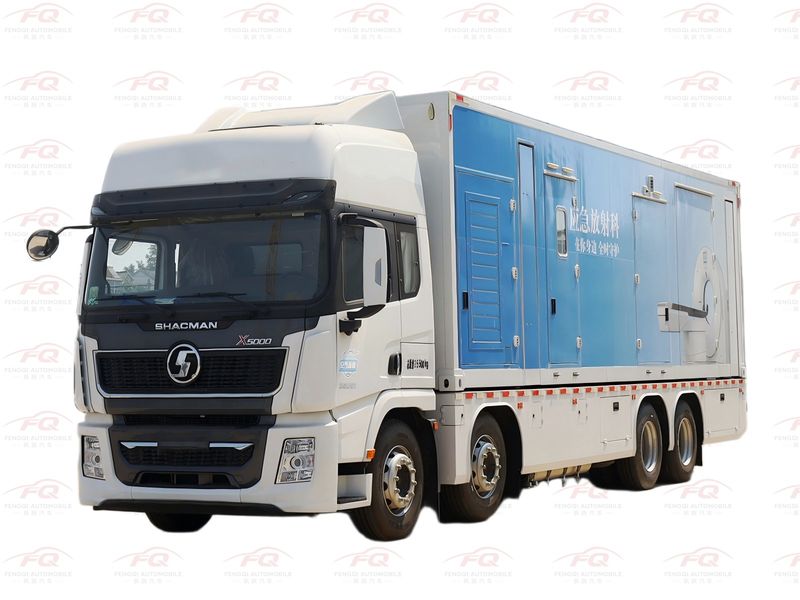

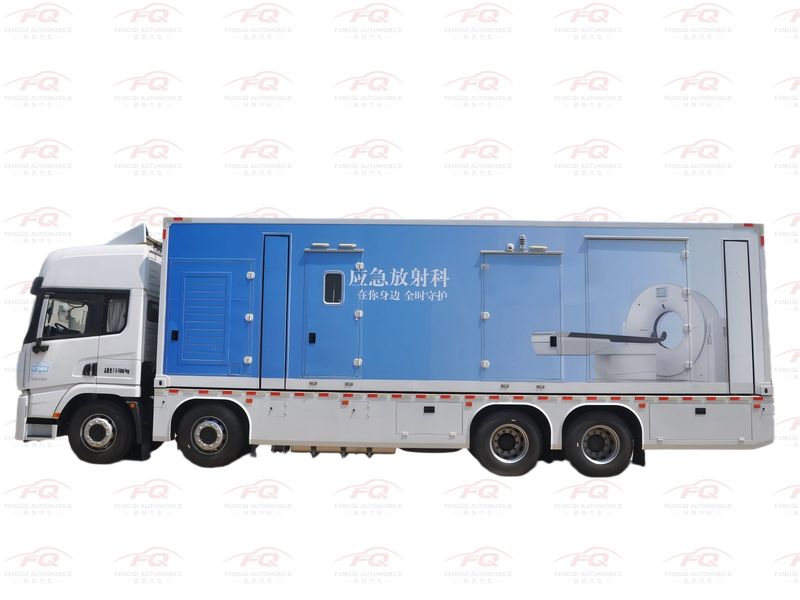

SHACMAN 8×4 Mobile Medical Laboratory Truck

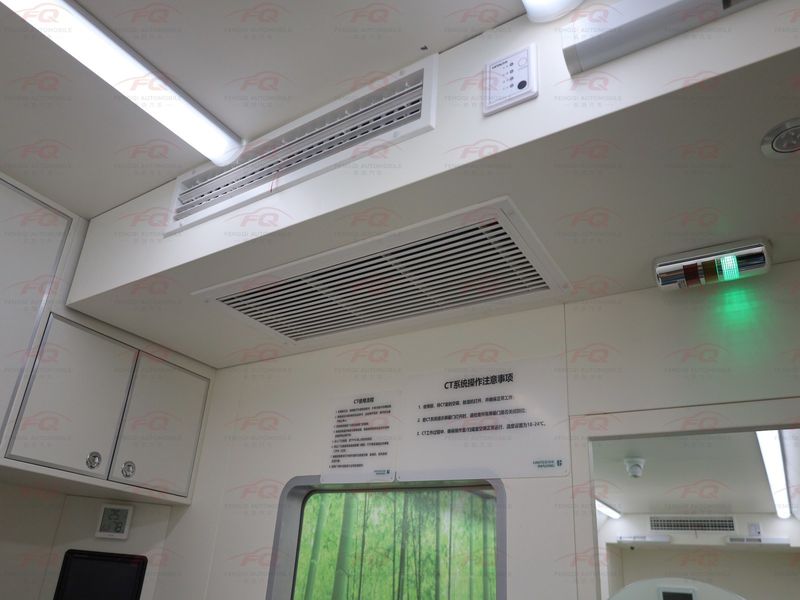

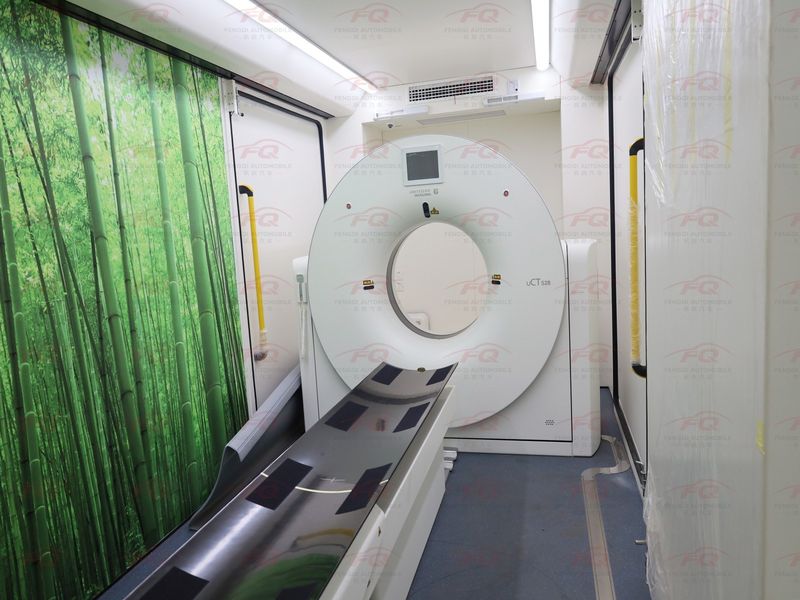

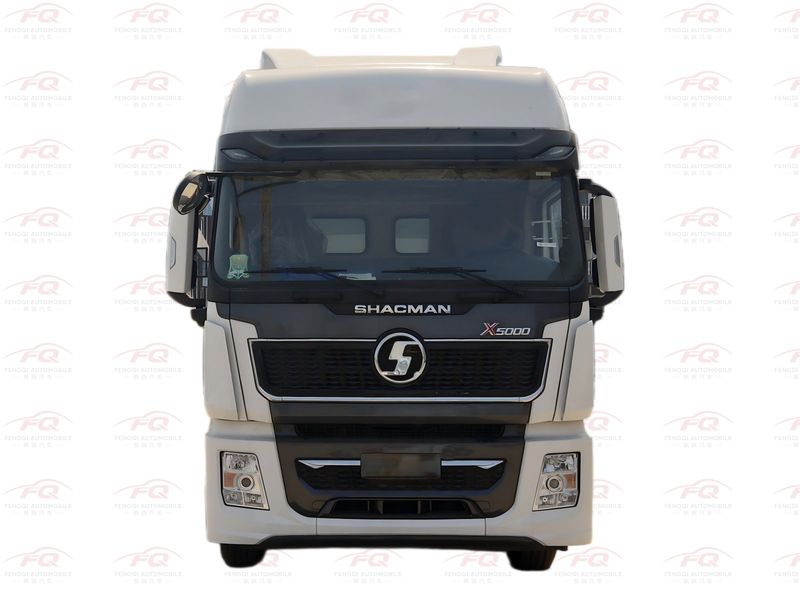

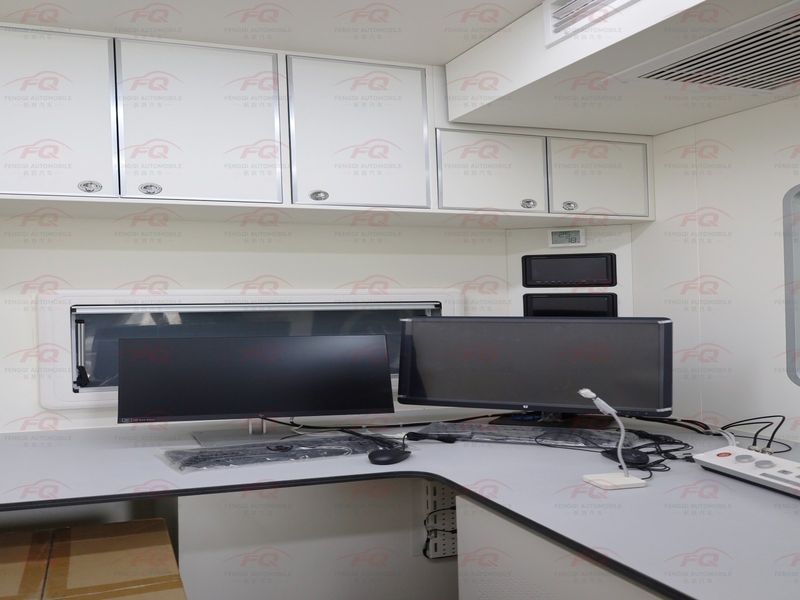

This medical vehicle is built on the SHACMAN SX1329XC6F1 heavy-duty 8×4 four-axle type-II chassis, with a 12-meter overall length and 25–26 ton gross weight. The compartment integrates medical laboratory equipment (biosafety cabinet, nucleic acid testing devices, medical instrument cabinets, ultra-clean workbench, medical refrigerator) with optional CT imaging equipment and operation console, serving medical examination, diagnosis, and epidemic prevention — an expandable mobile shelter hospital and mobile testing laboratory. Overall dimensions are 12000 × 2550 × 3880/3950/3995 mm, wheelbase 1800+4575+1400 mm, four axles, front/rear overhangs 1525/2700 mm. Curb weight is 25305/25370/25805/25870 kg (varies by medical equipment configuration), GVW 25500/26000 kg, cab seating 2/3, top speed 89 km/h (with speed limiter). It rides on twelve 12R22.5 18PR or 295/80R22.5 18PR tires with non-independent air suspension, approach/departure angles 17°/11°, ABS by Xi'an Zhengchang ZQFB-V, and optional ETC. Power comes from Weichai China VI diesel engines ranging 257–360 kW, with options including WP12.490E62 (360 kW / 489 hp), WP11S460E68 (338 kW), WP10.5H430E62 (316 kW), or WP8.350E61·E62 (257 kW / 349 hp). The dedicated module includes medical laboratory equipment (biosafety cabinet, nucleic acid testing, instrument cabinets, ultra-clean workbench, medical refrigerator), optional CT imaging with console, and single- or dual-side expandable cabin (parking use only); side protection is Q235A skirt at 430 mm ground clearance, rear protection is Q235A 50×120 section at 450 mm.
