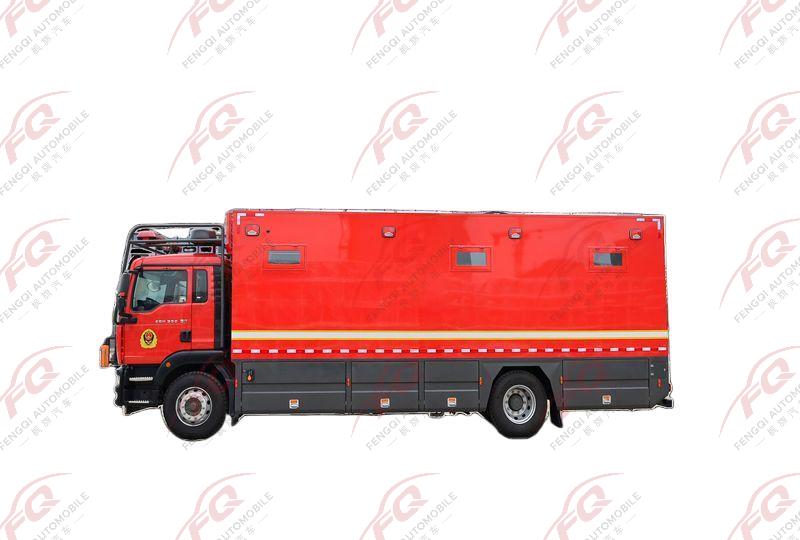

Sitrak ZZ5186 Emergency Support Fire Truck

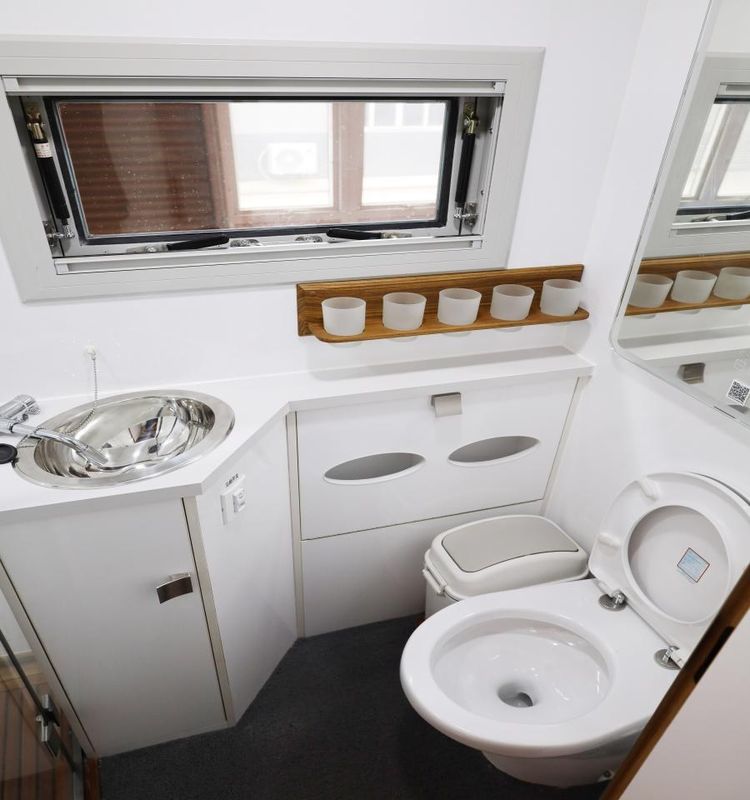

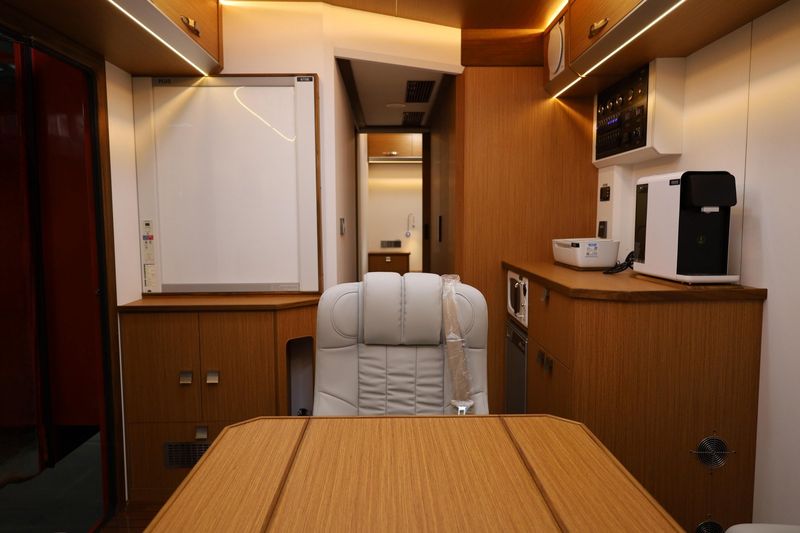

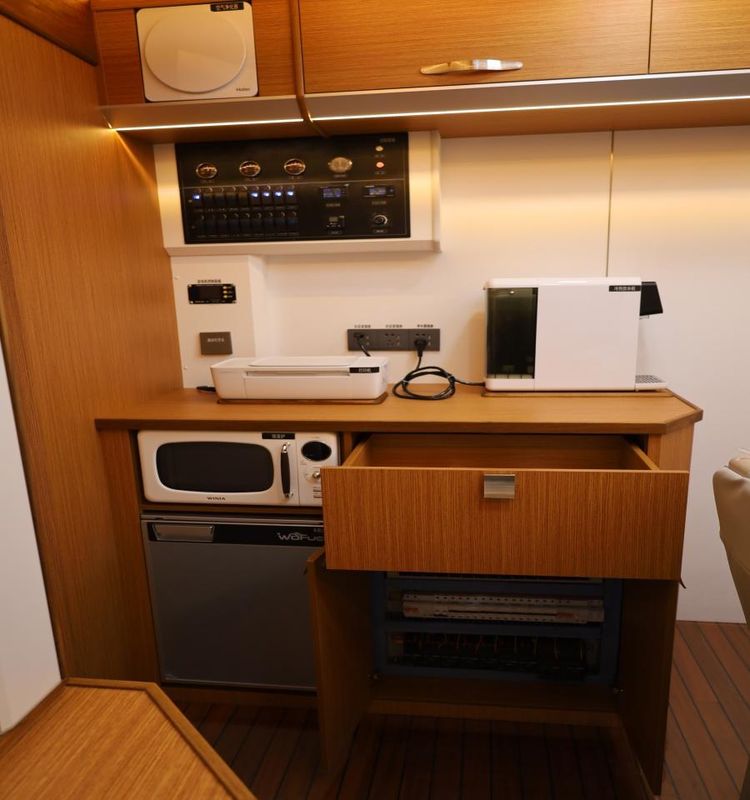

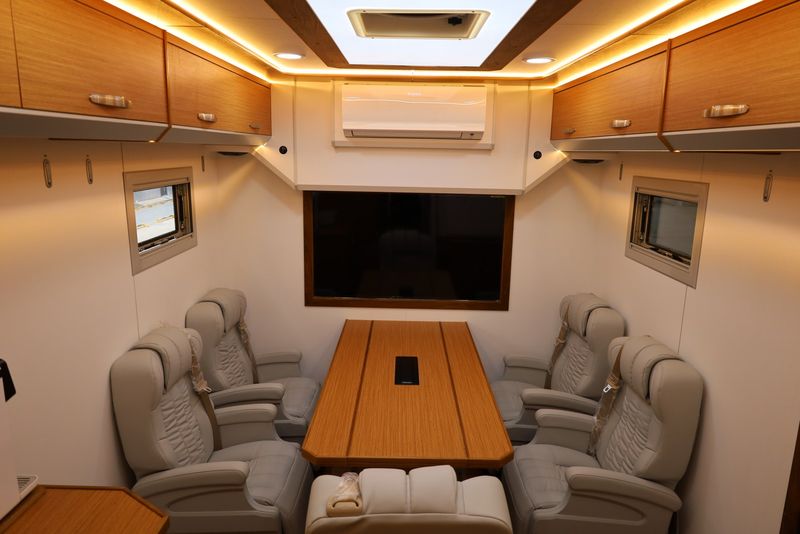

This emergency support fire truck is built on the Sinotruk Sitrak ZZ5186XXYN561GF1 type-II chassis, with a 15800 kg gross weight (approximately 16-ton class) and China VI diesel power. Positioned as a fire emergency logistics support platform, its main dedicated equipment includes an expandable camping cabin and various fire-fighting equipment, with both sides of the compartment expandable during operation, serving as both a mobile equipment warehouse and a bilaterally expandable camping and preparation base. Body dimensions are 9850 x 2550 x 3800 mm, wheelbase available in multiple options (3600-6300 mm), curb weight 15050 kg, GVW 15800 kg, payload 600 kg, cab seating for 2. Top speed is 110 km/h, approach/departure angles 16/8 degrees, with six 295/80R22.5 18PR tires (multiple sizes optional), and EBS by ZF Commercial Vehicle Systems (Qingdao) EBS3. Power comes from China VI diesel engines with multiple power options from 180-258 kW: Sinotruk series including MC05H (180-206 kW), MC07 (188-251 kW), MC07H (213-258 kW); Weichai series including WP6H (180/199 kW), WP7 (199/220 kW), WP7H (199-235 kW), WP8.350 (257 kW). The support module includes an expandable camping cabin (bilaterally expandable) with various fire-fighting equipment carriage, domestic water storage system (fresh water 0.6 m3, grey water 0.25 m3, black water 0.13 m3, not simultaneously full), and integrated side protection with rear protection Q355B (100x120 mm, bolted, 410 mm ground clearance). Typical applications include disaster rescue forward deployment (initial support and equipment delivery at earthquake, flood, and mudslide sites), fire station forward garrison (long-term camping and equipment preparation base), exercises and training (mobile camping and support platform during drills), large-event security (mobile support point for fire duty and emergency standby), remote or uninhabited area support (self-contained camping with equipment carriage to reduce external dependency), and enterprise or industrial park fire protection (mobile support and equipment carriage for professional fire brigades).
Photos
Key data
| Vehicle Model | Emergency Support Vehicle |
| Emission Standard (China V / China VI / Euro III–VI) | China V |
| Fuel Type (Diesel / Gasoline / Electric / Hybrid) | Diesel |
| Drive Configuration (4×2 / 6×4 / 8×4 / 4×4) | 4x2 |
| Overall Dimensions (L × W × H) mm | 9850x2550x3800mm |
| Engine Displacement (L) | 7.5L |
| Seating Capacity | 2 |
