Dongfeng Mengshi M20 Off-Road UAV Command Vehicle

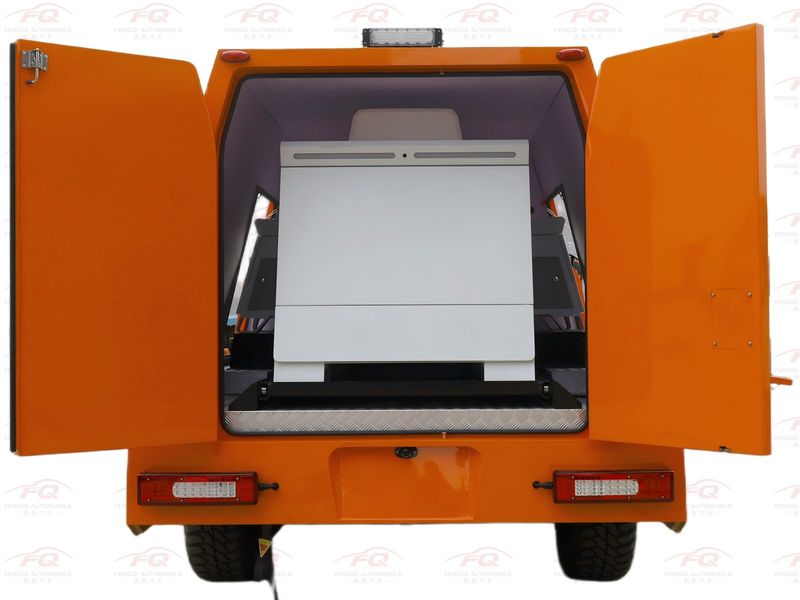

This command vehicle is built on the Dongfeng EQ2068FYY6J off-road type-II chassis, with a 5999 mm overall length and 4495 kg gross weight, serving as a lightweight emergency command platform combining high off-road capability with UAV operation capability. The vehicle integrates a UAV nest and command workstation in the compartment, enabling on-site takeoff, landing, and stowage of drones for reconnaissance and image transmission missions, complemented by rear floodlights and audio-video command system, suitable for forward command, situational reconnaissance, and on-site conferencing by fire, emergency, public security, and power departments in complex terrain and unsupported conditions. Body dimensions are 5999 x 2160/2260 x 2720 mm, wheelbase 3700 mm, curb weight 4300/4365 kg, cab seating for 3/2, top speed 140/130 km/h, approach/departure angles 33/19 degrees. Power comes from Dongfeng Cummins D4.5NS6B220 (162 kW), D4.5NS6B240 (176 kW), or D6.7NS6B320 (231 kW) China VI diesel engines with multiple options, ABS by Guangzhou Ruilikemi, and optional direct-power ETC. Declared dedicated equipment includes UAV nest and command workstation; rear floodlights are for parking operation only, and the compartment roof is sealed and non-openable. Typical applications include UAV reconnaissance command (using drone-returned imagery to assist decision-making and dispatch at disaster, accident, and security scenes), complex terrain forward command (off-road chassis suitable for unpaved road transitions in villages, mountains, and dams), night emergency response (rear floodlights ensuring parking illumination for continuous workstation operation), and power or municipal patrol maintenance (temporary command and UAV inspection at field operation sites).
