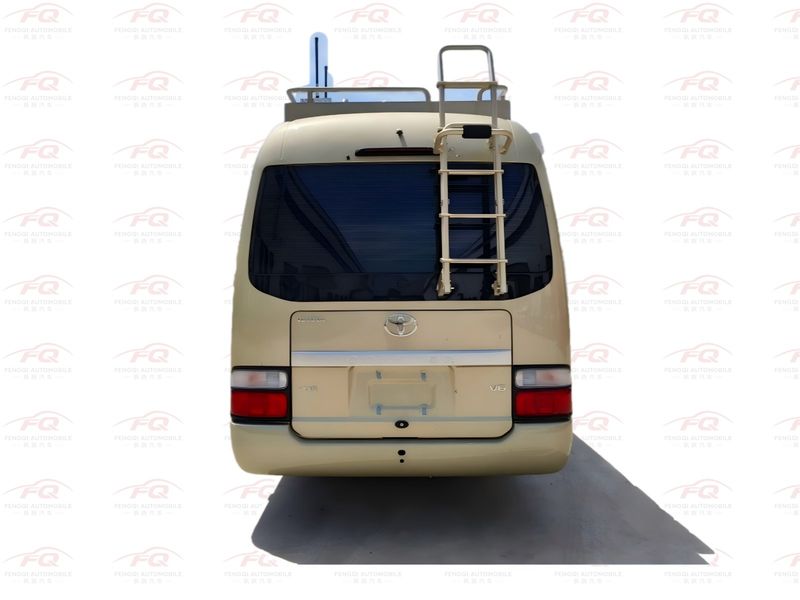

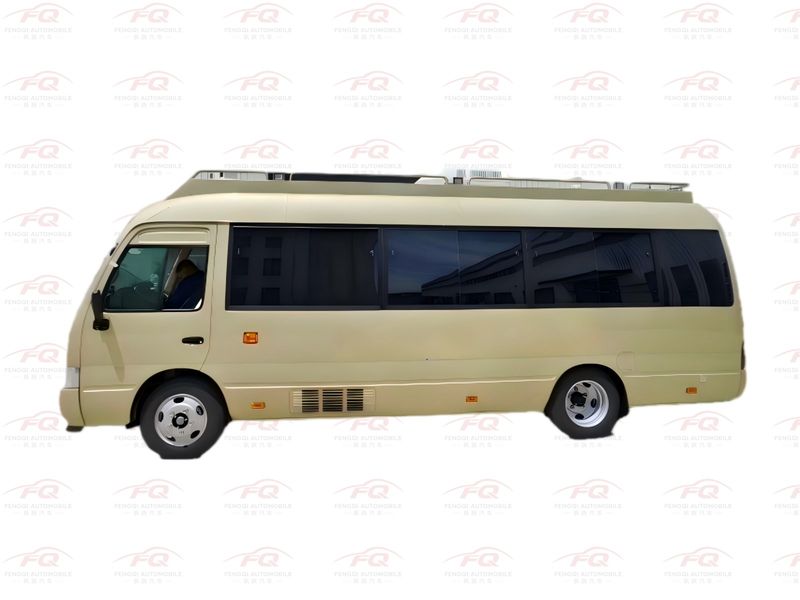

Toyota Coaster Command Vehicle NJR5069XZH
The NJR5069XZH command vehicle is a medium-duty command vehicle built on the Toyota Coaster bus chassis, with a 7-meter class body, 5.5-ton gross weight, and seating for 2-9. It integrates a command workstation with audio-video and surveillance systems, serving as a rapidly deployable mobile command post for emergency rescue, public security, and large-event support. Body dimensions are 7005/7110 x 2040 x 2620-3160 mm (height varies across 9 levels by roof options), wheelbase 3935 mm, curb weight 4450/4600/4800/4950/5100 kg, GVW 5540 kg, seating for 2-9 (2-6 when curb weight is 5100 kg), and axle loads 2230/3310 kg. Top speed is 130 km/h, approach/departure angles 13/12 degrees, with six 215/70R17.5 tires. The engine is a Toyota 9GR, 3956 ml displacement (4.0L V6), 151 kW (approximately 205 hp), gasoline, China IV emission standard, with DENSO 89541-36200 ABS. Dedicated equipment includes command workstation, command system, and equipment cabinet; options include PTZ camera, roof-mounted AC, perimeter lighting (parking only), roof platform, high-mast lighting (parking only), satellite antenna, awning, blind windows, and rear ladder.
Photos
Key data
Request A Quotation
Tell us your chassis preference, target market and equipment list. We respond within 2 business days.
